Counter Block

This article explains the features of the Counter block and how it can be used to design your app.

‍

‍

Editing the block

Click on the Counter block and start editing on the panel that appears on the right side.

‍

Label

The label is the name of the block that the end user sees in the app.

Example: Number of items.

‍

Description

The description is the additional information provided to the end user which will be displayed below the input area.

Example: Click + to add or - to less.

‍

‍

‍

‍

‍

‍

‍

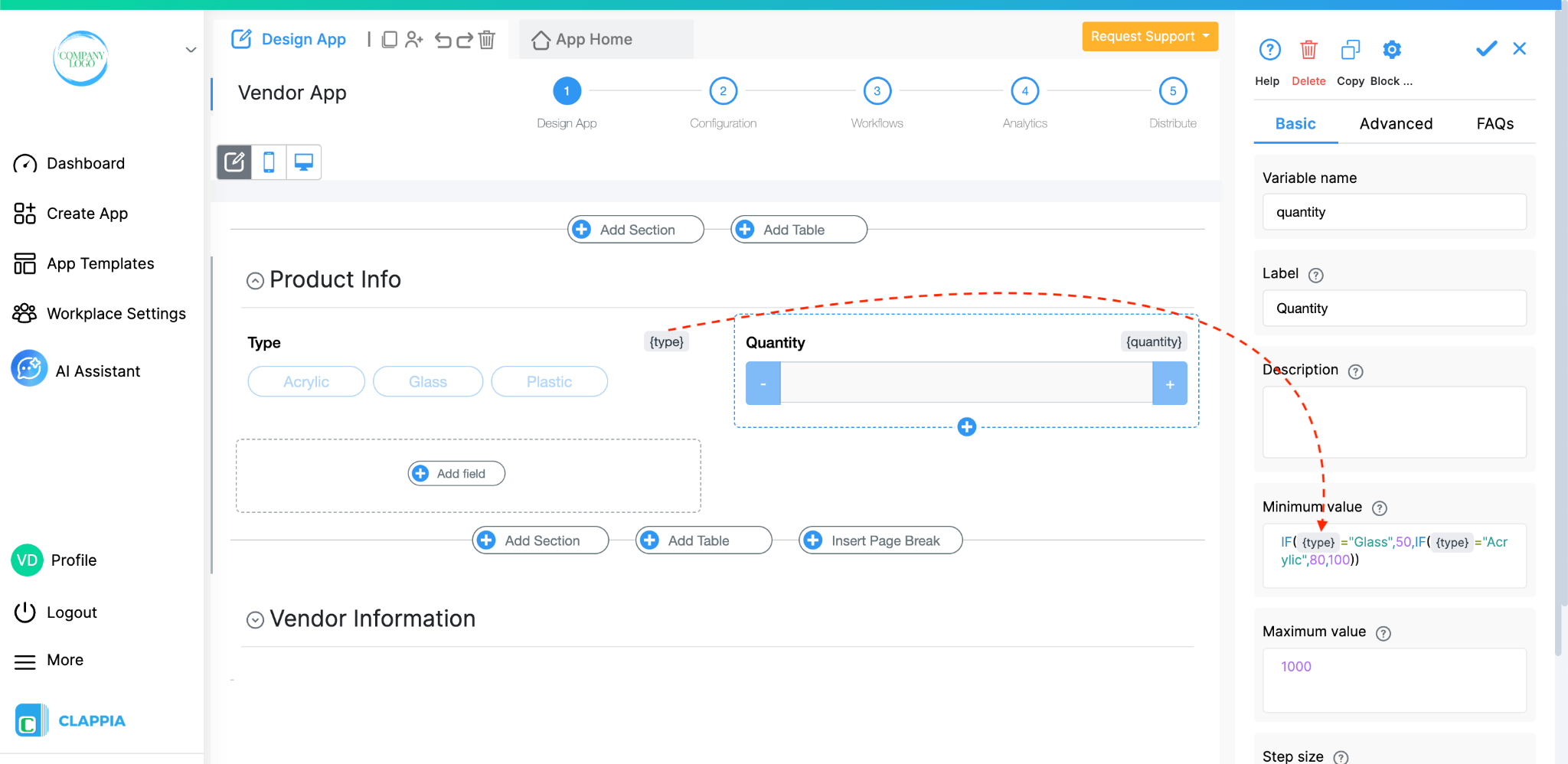

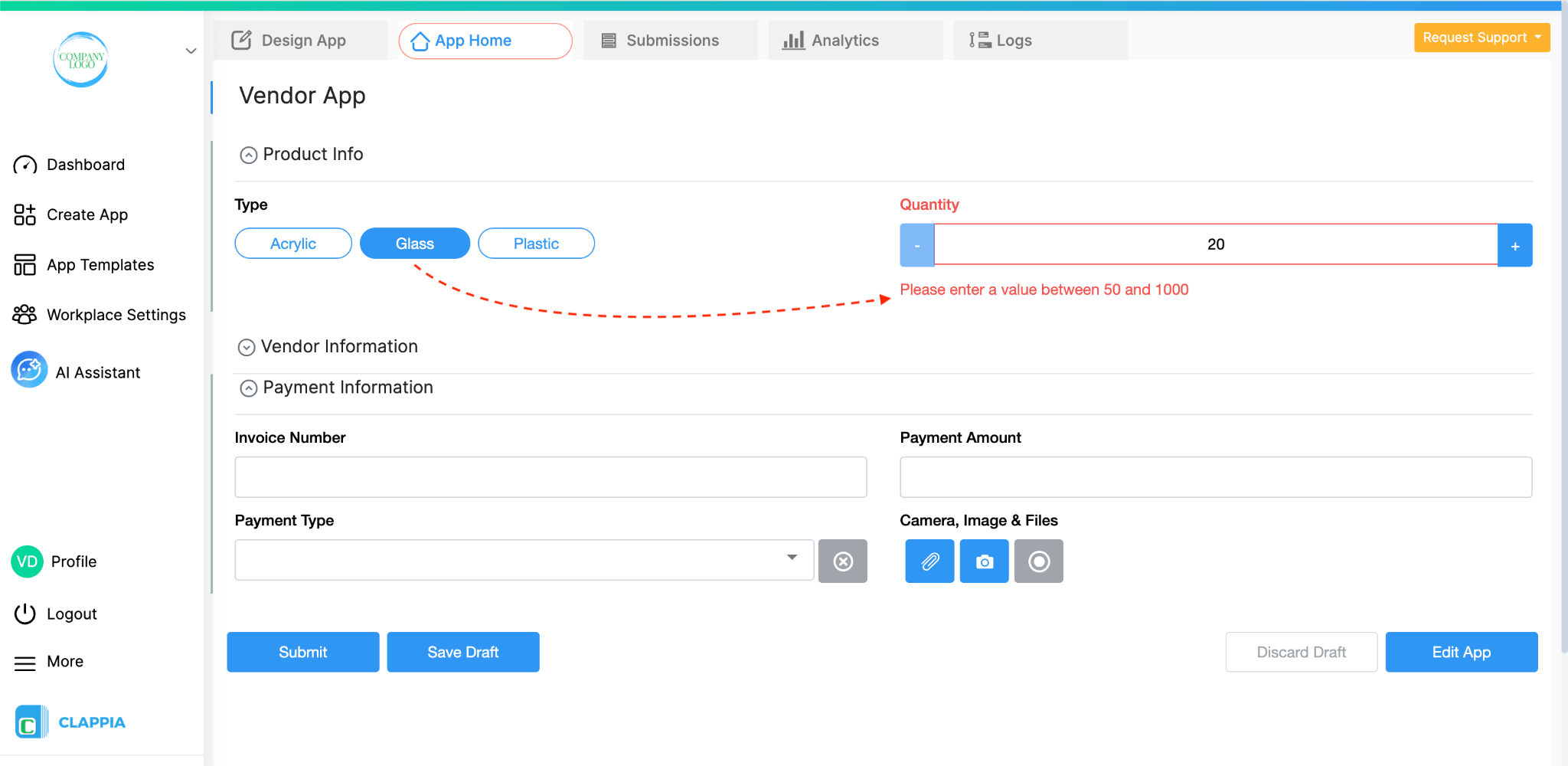

Minimum value

The least value that an end user can input in the counter block.

‍

Maximum value

The maximum value an end user can input in the counter block.

‍

Step size

Step size is the step difference between the numbers increment/decrement in the counter block when the user clicks + or - buttons.

‍

Default value

The step difference between the numbers in the counter block when the user clicks + or - buttons.

Required

Enable this option if you want the user to compulsorily input the data. If enabled, the end user can submit if and only if the data is entered in this field.

‍

Advanced options

Use this option to show the advanced options to configure the counter block.

‍

‍

‍

Display this field if

Use this if you want to show or hide a field under certain conditions. It accepts the standard Clappia Formulae, similar to conditional sections.

‍

1. You can type ‘@’ to get a list of all the variables in the app and select variables.

2. Using these variables you can write Excel-like formulae.

Allow value to be changed after initial submission

This option is enabled by default. End users can edit the value entered in this field after creating a submission. Disable it if you do not want the end users to edit the submitted value.

‍

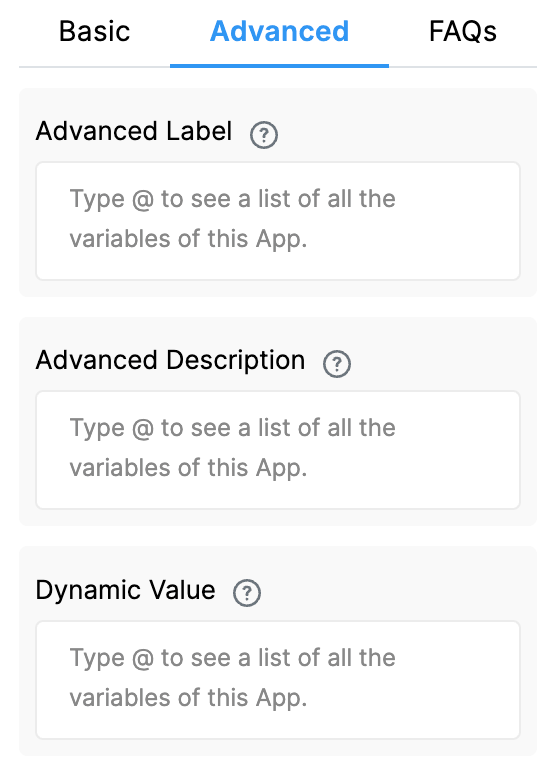

Advanced Label

The Advanced Label option allows you to change the label of a field dynamically based on a condition you define. Instead of always showing the same fixed label under the ‘Basic’ tab, the field can display different labels depending on requirements of the form. Use spreadsheet-like functions such as IF, AND, OR, etc. and make use of other field variables to set your conditions. Type @ and select the field.

This is useful when the meaning of a field changes based on context, business logic, or user choices.

For example:
If you have a dropdown called Count Type with options “Boxes Counted” and “Units Counted”.
The Counter label should reflect what is being counted.

So:
– If Boxes Counted, show “Number of Boxes”
– If Units Counted, show “Number of Units”

Formula:

IF({count_type} = "Boxes Counted", "Number of Boxes", "Number of Units")

This allows the same field to adapt its displayed purpose without needing multiple separate fields.

Advanced Description

The Advanced Description option works exactly like Advanced Label, but it changes the description text instead. This is useful when guidance or instructions for a field need to change depending on earlier answers.

For example, using the same scenario from Advanced Label:
If you have a dropdown called Count Type with options like “Boxes Counted” and “Units Counted”, you may want the description of your Counter field to guide the user differently depending on what they selected.

So:
– If the user selects Boxes Counted, the description could say: “Tap to adjust the number of boxes counted.”
– If the user selects Units Counted, the description could say: “Tap to adjust the number of units counted.”

Formula:

IF({count_type} = "Boxes Counted", "Tap to adjust the number of boxes counted." "Tap to adjust the number of units counted.")

This helps users understand what is required from them without showing unnecessarily long or irrelevant instructions.

‍

Additional Examples (Apply to Both Advanced Label and Advanced Description)

1. Showing nothing until a selection is made

For example, if you have a dropdown field called Visit Category with options “Routine” and “Urgent”, you may want the label or description of a field to remain blank until the user first selects a category.

Once a selection is made:

• If the user chooses Routine, the field will display “Routine”.
• If the user chooses Urgent, the field will display “Urgent”.

Formula (can be used in either Advanced Label or Advanced Description):

{visit_category}The label/description stays empty until the dropdown has a selected value.
After the user picks an option, the selected text (Routine or Urgent) becomes the label or description.

2. Changing label/description based on language selection

For example, if your form includes a dropdown field called Select Language with options English, Spanish, and French, you can show the label or description in the selected language.

So:

• If the user selects English, show English text.
• If the user selects Spanish, show Spanish text.
• If the user selects French, show French text.

Formula (can be used in either Advanced Label or Advanced Description):

IF({select_language} = "English", "Enter details", IF({select_language} = "Spanish", "Ingrese detalles", "Entrez les détails"))The formula returns the text for the selected language.
Only one label/description is shown at a time, depending on what the user picks in the Select Language dropdown.

‍

Important Notes (applies to both Advanced Label and Advanced Description)

1. Variables do not change
When a field is created, its variable name is derived from the label you set in the Basic tab. That variable name is what you must use in formulas, workflows, and other logic. The visible label or description shown by Advanced Label / Advanced Description does not change the variable name.

2. Submissions tab: table view vs right panel
In the Submissions area, the table view always displays the labels from the Basic tab. When you open an individual submission, the right panel shows the labels and descriptions as they appear in the form (i.e., the Advanced Label and Advanced Description applied for that submission). This keeps the submission list consistent while letting reviewers see the context-aware labels and descriptions when viewing a record.

3. Bulk Edit shows Basic tab labels and descriptions
When you need to Bulk Edit submissions, the spreadsheet you download shows the labels and descriptions from the Basic tab only. Advanced Label and Advanced Description are not applied in Bulk Edit, so keep that in mind when preparing bulk updates.

4. Some fields cannot be used inside Advanced Label/Description formulas
Certain block types do not expose a variable that can be referenced in Advanced Label or Advanced Description. If a block does not expose a variable, you cannot use it inside the formula.

Geo Address

GPS Location

PaymentGateway

Audio

Live Tracking

Signature

Code Scanner

NFC Reader

Get Data from RestApi

Get Data from Other Apps

Get Data from Google Sheets

Get Data from Database

AI Block

Text, HTML & Embedding

Attached Files

Image Viewer

Video Viewer

PFD Viewer

Code block

Progress Bar

Action Button
