Geo-Address Block

This article explains the Geo-Address Block that can be used to search for Addresses and get their GPS Locations. This is a premium feature and is available for the Professional plan. Click here to know more about pricing.

Use Cases

1. Address verification: The block can be used to verify and validate user-entered addresses, ensuring they are accurate and complete.
2. Location tagging: Users can tag specific addresses to their posts, messages, or other content within the app, providing context or location information.
3. Contact information collection: The block can assist in collecting and storing accurate address details of users or customers for contact purposes.
4. Data enrichment: The GPS location and address information can be used to enrich user profiles or data within the app, providing additional context or insights.
5. Address sharing: Users can share specific addresses with others through the app, facilitating communication or coordination related to a particular location.
6. Address-based search: The app can utilize the GPS location and address information to perform searches within the app, retrieving relevant content or data associated with specific addresses.
7. Routing or directions: The GPS location can be used to provide directions or routing information within the app, helping users navigate to a chosen address.

Editing the Block

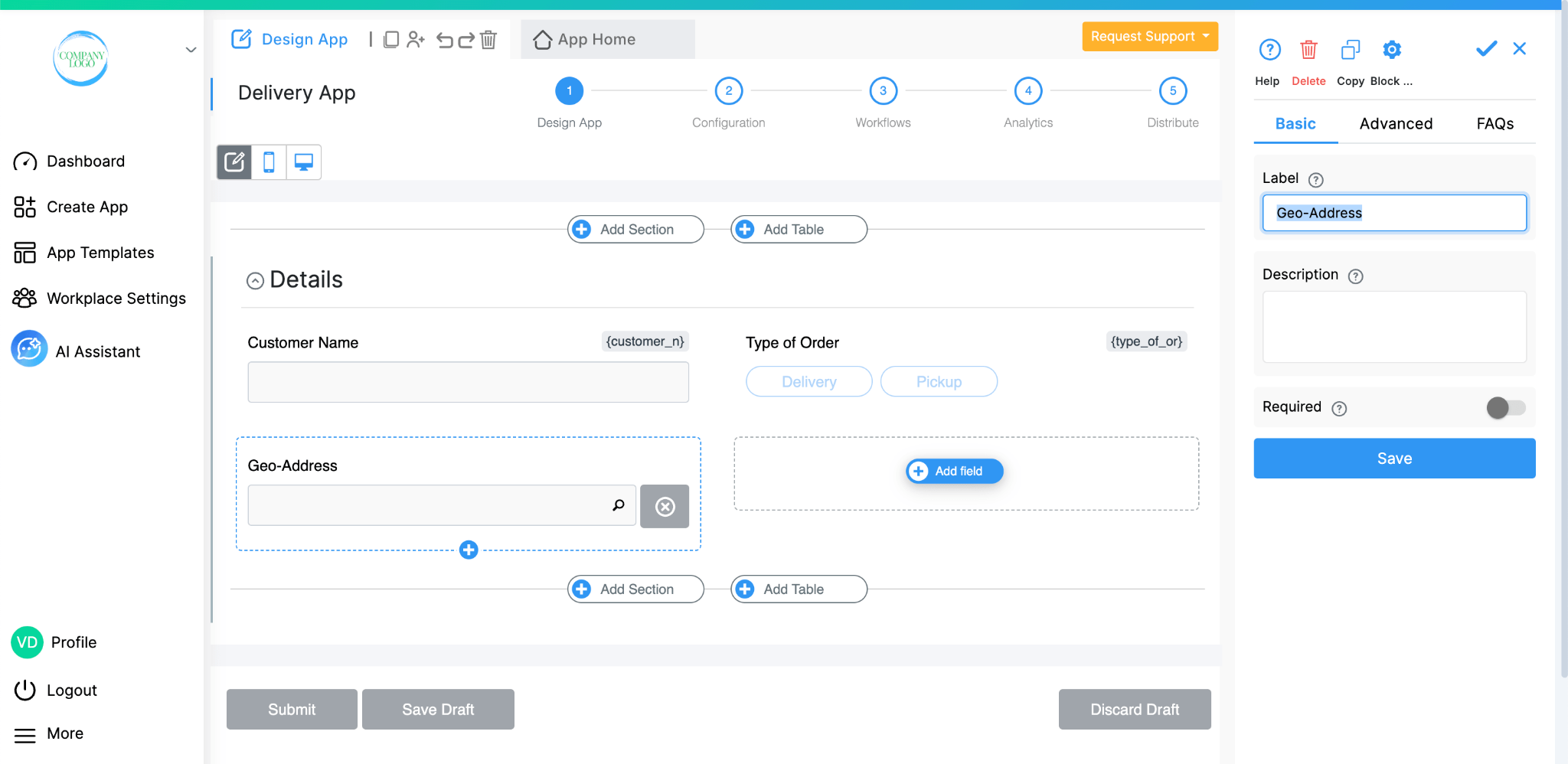

Click on the block and start editing on the panel that appears on the right side.

Label

This is what appears as the label for the Address Block. For example, "Customer Address", "Delivery Address". "Search for the pickup Location".

Description

Additional Help Text with the Block. For Example, "Start typing the Customer's Address".

Required

Enable this option to tell the user that it is a compulsory field.

Advanced Options

Click on the Advanced tab in the right panel to view more configuration options for the Geo-Address block.

Countries List

You can restrict the search results to specific countries by selecting from the dropdown list. If left empty, addresses from all regions will appear when users start typing.

Display this field if

Apply conditions to decide whether the Block should be displayed or not.

It accepts the standard Clappia formulae, similar to spreadsheet logic (used also in conditional sections or in the 'Calculations & Logic' block).

1. Type @ to get a list of all the fields you have added in the app and select the relevant field or type @ followed by the field name.
2. Use these field variables to write spreadsheet-like formulae for conditional display of the field in the app.

Retain value if hidden

This option appears once a condition is set in the Display this field if option. Enable this setting if you want the field's value to be retained even when the field is hidden. This is useful for preserving user input in cases where the field may temporarily disappear based on conditions.

Example: If the field is hidden based on user selection but you still need to keep the entered value for future reference or calculations, enable this option to ensure the data is retained.

‍

Advanced Label

The Advanced Label option allows you to change the label of a field dynamically based on a condition you define. Instead of always showing the same fixed label under the ‘Basic’ tab, the field can display different labels depending on requirements of the form. Use spreadsheet-like functions such as IF, AND, OR, etc. and make use of other field variables to set your conditions. Type @ and select the field.

This is useful when the meaning of a field changes based on context, business logic, or user choices.

For example:
If you have a dropdown called Visit Purpose with options “Customer Visit” and “Site Visit”.
Label should update to match the purpose.

So:
– If Customer Visit, show “Customer Location”
– If Site Visit, show “Site Location”

Formula:

IF({visit_purpose} = "Customer Visit", "Customer Location", "Site Location")

This allows the same field to adapt its displayed purpose without needing multiple separate fields.

Advanced Description

The Advanced Description option works exactly like Advanced Label, but it changes the description text instead. This is useful when guidance or instructions for a field need to change depending on earlier answers.

For example, using the same scenario from Advanced Label:
If you have a dropdown called Visit Purpose with options like “Customer Visit” and “Site Visit”, you may want the description of your Geo-Address field to guide the user differently depending on what they selected.

So:
– If the user selects Customer Visit, the description could say: “Confirm the customer location auto-filled from GPS.”
– If the user selects Site Visit, the description could say: “Confirm the site location auto-filled from GPS.”

Formula:

IF({visit_purpose} = "Customer Visit", "Confirm the customer location auto-filled from GPS.", "Confirm the site location auto-filled from GPS.")

This helps users understand what is required from them without showing unnecessarily long or irrelevant instructions.

‍

Additional Examples (Apply to Both Advanced Label and Advanced Description)

1. Showing nothing until a selection is made

For example, if you have a dropdown field called Visit Category with options “Routine” and “Urgent”, you may want the label or description of a field to remain blank until the user first selects a category.

Once a selection is made:

• If the user chooses Routine, the field will display “Routine”.
• If the user chooses Urgent, the field will display “Urgent”.

Formula (can be used in either Advanced Label or Advanced Description):

{visit_category}The label/description stays empty until the dropdown has a selected value.
After the user picks an option, the selected text (Routine or Urgent) becomes the label or description.

2. Changing label/description based on language selection

For example, if your form includes a dropdown field called Select Language with options English, Spanish, and French, you can show the label or description in the selected language.

So:

• If the user selects English, show English text.
• If the user selects Spanish, show Spanish text.
• If the user selects French, show French text.

Formula (can be used in either Advanced Label or Advanced Description):

IF({select_language} = "English", "Enter details", IF({select_language} = "Spanish", "Ingrese detalles", "Entrez les détails"))The formula returns the text for the selected language.
Only one label/description is shown at a time, depending on what the user picks in the Select Language dropdown.

‍

Important Notes (applies to both Advanced Label and Advanced Description)

1. Variables do not change
When a field is created, its variable name is derived from the label you set in the Basic tab. That variable name is what you must use in formulas, workflows, and other logic. The visible label or description shown by Advanced Label / Advanced Description does not change the variable name.

2. Submissions tab: table view vs right panel
In the Submissions area, the table view always displays the labels from the Basic tab. When you open an individual submission, the right panel shows the labels and descriptions as they appear in the form (i.e., the Advanced Label and Advanced Description applied for that submission). This keeps the submission list consistent while letting reviewers see the context-aware labels and descriptions when viewing a record.

3. Bulk Edit shows Basic tab labels and descriptions
When you need to Bulk Edit submissions, the spreadsheet you download shows the labels and descriptions from the Basic tab only. Advanced Label and Advanced Description are not applied in Bulk Edit, so keep that in mind when preparing bulk updates.

4. Some fields cannot be used inside Advanced Label/Description formulas
Certain block types do not expose a variable that can be referenced in Advanced Label or Advanced Description. If a block does not expose a variable, you cannot use it inside the formula.

Geo Address

GPS Location

PaymentGateway

Audio

Live Tracking

Signature

Code Scanner

NFC Reader

Get Data from RestApi

Get Data from Other Apps

Get Data from Google Sheets

Get Data from Database

AI Block

Text, HTML & Embedding

Attached Files

Image Viewer

Video Viewer

PFD Viewer

Code block

Progress Bar

Action Button

‍

Using the Block

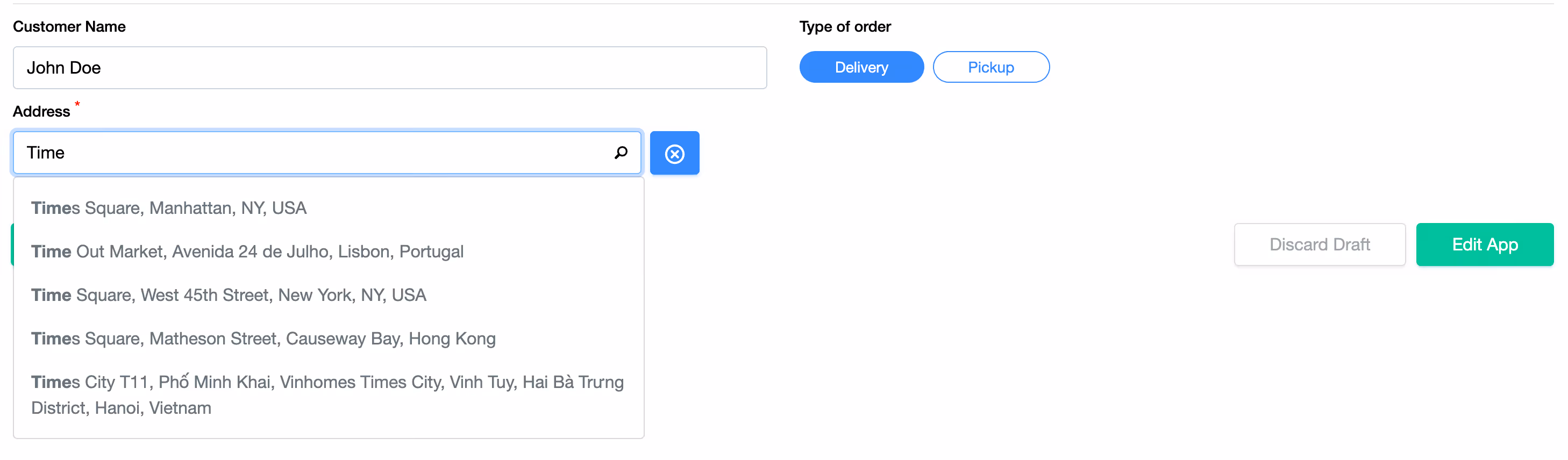

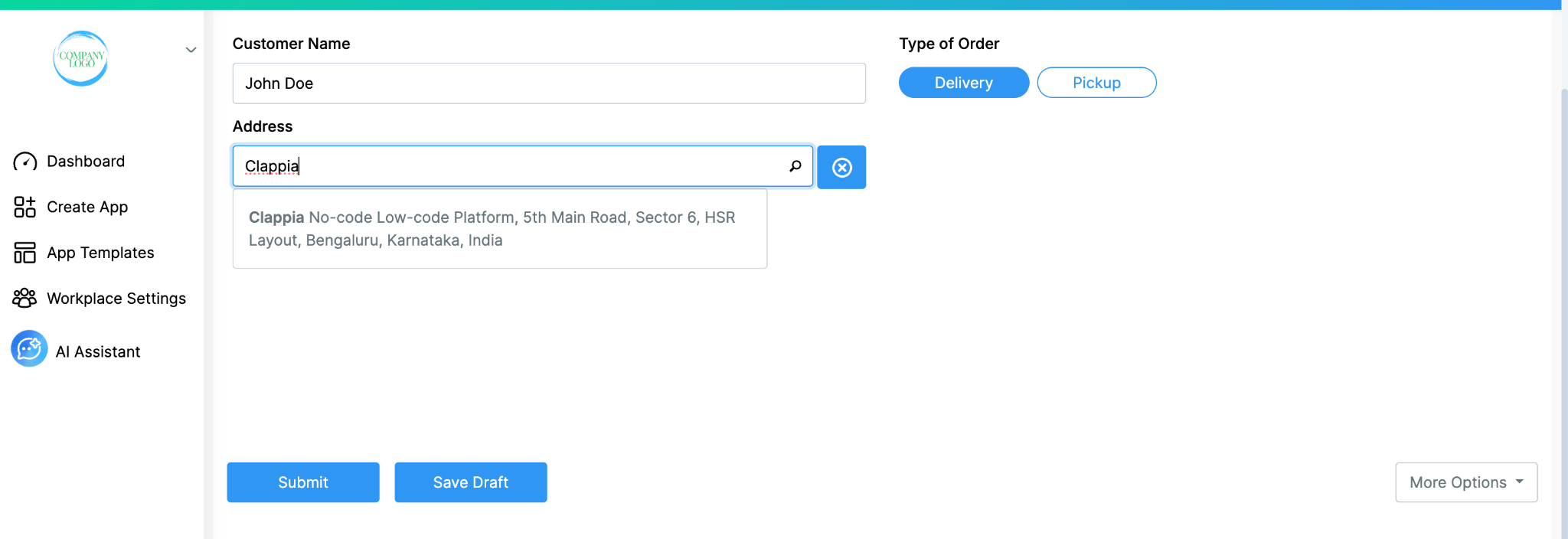

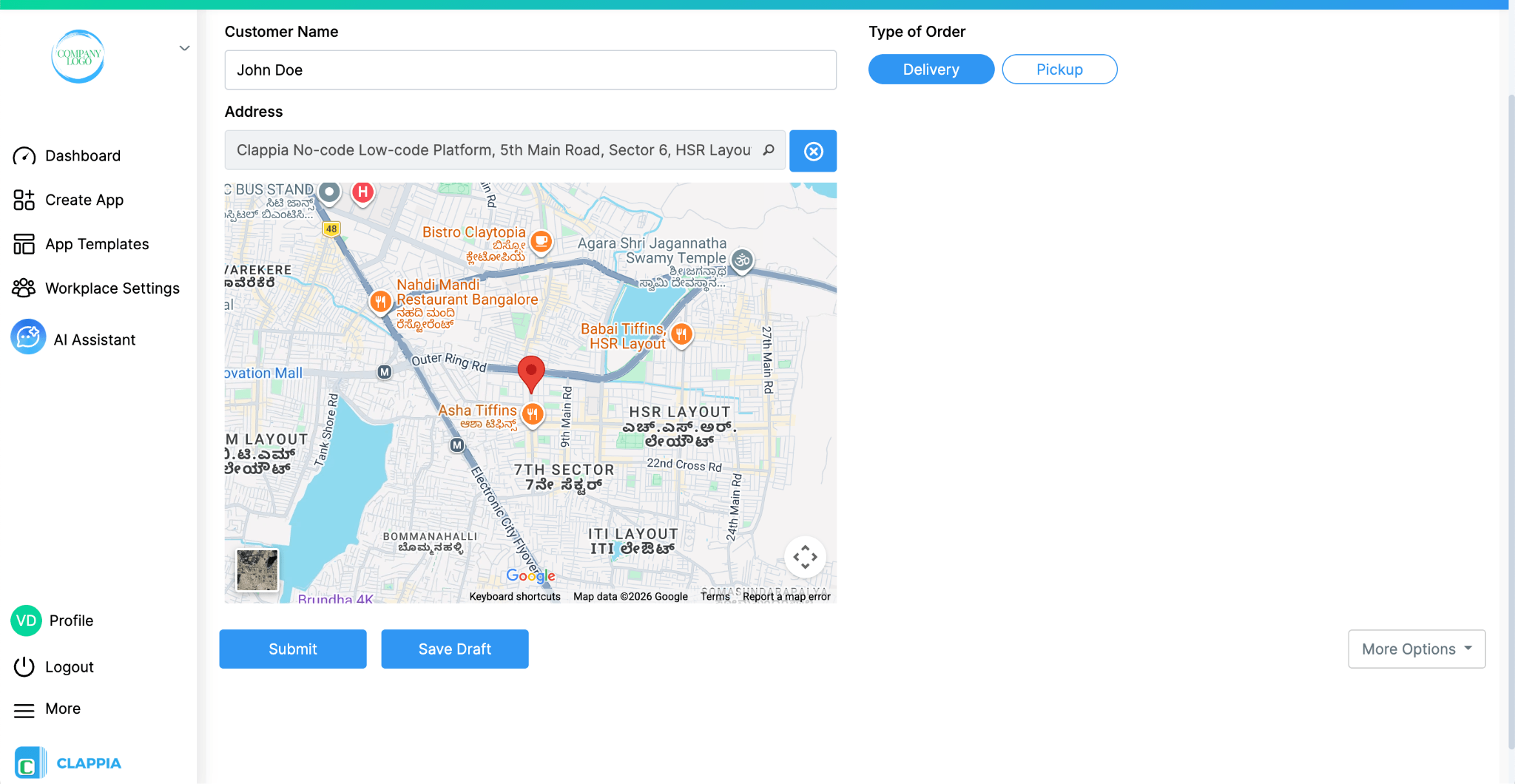

End-users of the App can start typing the Address. They will start seeing Address suggestions and when they find a suitable address, they can select it. On selecting, the GPS Location of that Address will be displayed on a Map below.

Using the GPS Location of the selected Address

The App Admin can define a formula to fetch the GPS Location of the selected address and use it in other blocks. For example, GeoTagging of uploaded photos, calculating distance between two locations etc.

When the geo address block is saved, Clappia automatically generates GPS-related variables for use in the app.

To extract these values:

1. Add a Calculations & Logic block to the app.
2. In the Formula section, type @ to pull up the list of variables.
3. You will see two variables for the Geo-Address block:
   • {geoaddress#desc} — This gives the full description of the address selected (e.g., "HSR Layout, Bengaluru, Karnataka")
   • {geoaddress#gps} — This gives the GPS coordinates (latitude and longitude) of the selected address.

These can be used in other parts of the app—for example, displaying the selected address, calculating distances between two locations, or passing location details to external systems.

Usage of Geo Address Block in Link Sharing Mode

The Geo Address block does not work in Link Sharing mode by default. If your app is being accessed through a public link (i.e., without requiring login), users will not be able to type in to see any address suggestion. An error message will be displayed.

To make this block functional in Link Sharing mode, you must provide your own Google Maps API key.

How to make the block work in Link Sharing mode:

1. Go to Design App > Configurations
2. Click on Third Party Integrations
3. In the right panel, enter your Google Maps API key in the space provided
4. Click Save

Once this is done, the Geo Address block will start showing suggestions and the map pin for users accessing the app through a public link.

Generating the Google Maps API Key

To get your own API key, follow these steps:

1. Go to the Google Developer Console
2. Create a new project or select an existing one
3. Enable the required services in your Google Developer account
4. Generate the API key
5. Copy and paste the key into the Third Party Integrations section of your Clappia app

Note: You may incur charges from Google depending on usage or services enabled, based on their pricing policies.

Points to Note

• The Block does not work in Link Sharing mode unless you give your own Google maps API key.
• This is a premium feature and is available for use in the Professional plan.
